Wall mounted CO2 monitor with fan control with Modbus

Lato 152
Retro_a parete8

SKU: 01334-6400-00

Model: 01334-6400-00
Installation: on the wall
Sensors: CO2, temperature, humidity and brightness.
Fan speed control: 230 VAC.
Sales price 315,98 €
Sales price without tax 259,00 €
Discount
Tax amount 56,98 €


We ship to Italy
With shipment SDA for 15,86 €

Preloader

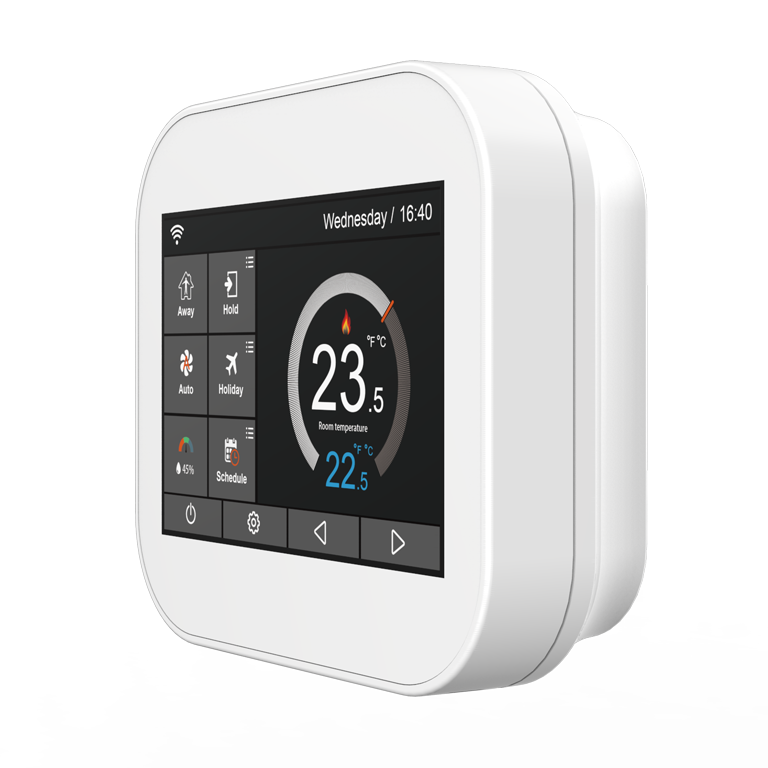

Wall mounted CO2 monitor with fan control with Modbus

Wall mounted CO2 monitor with fan control

The thermostat, model 01334-6400-00, is a Comfort.me MFC series device suitable for residential and working contexts where accurate control of the heating and cooling system is required. The modern design and the possibility of remote control allow the thermostat to be an excellent solution for those who own a system with forced air ventilation.

temperature2  Systems control

Model 01334-6400-00 controls forced ventilation and single fan systems.

  temperature2  Mounting type

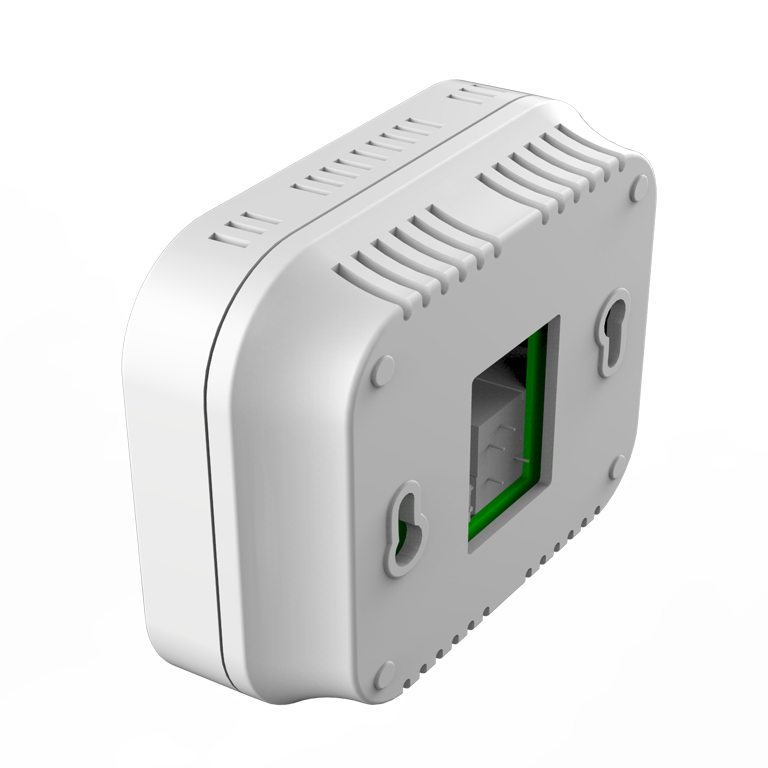

The 01334-6400-00 model can be wall-mounted thanks to the adapter included in the package. The installation is wired.

 temperature2  Connectivity

The 01334-6400-00 model has two types of connectivity: Wi-Fi and Modbus.






Discover the Line

Comfort.me MFC: the series of thermostats / monitors for heat pumps and fan coils / VMC

The Comfort.me MFC series of smart thermostats and sensors has been designed to meet the needs of all those who own heat pumps, fan coils and forced air ventilation systems. Thanks to the modern and elegant design and the multiple types of installation, the Comfort.me MFCs adapt to any residential and working context, providing concrete help in the management of systems and energy saving.


They are ideal for controlling heat pumps or fan coils with a direct (wired) connection and for monitoring the CO2 level in the environment.

Termostato a incasso con sala

Why choose Comfort.me MFC?



  • Can be installed on the wall or recessed.
  • They are equipped with a Modbus communication port allowing a quick dialogue between the elements of the systems that support the protocol.
  • Remotely controllable via App.
  • Ability to monitor the CO2 levels of the environment.

General technical specifications

Modes: hot, cold, de-humidification and holiday.

Unit of measurement ° C or ° F.

Sensors: temperature, humidity, brightness and CO2.

Connectivity: Wi-Fi and Modbus.

Auxiliary inputs: room occupation or fire alarm.


Schedules: daily up to six programs / day.

Features

Functionality



  • Display: 3.5 '' TFT color touch.
  • Remote management via application: absent.
  • Interface: multilingual (12 languages available).
  • Unit of measurement ° C or ° F.
  • Sensors: CO2, temperature, humidity and brightness.
  • Connectivity: Wi-Fi and Modbus (customization is required for incompatible registers).
  • Measurement storage: 7 days.
  • Fan speed control at: 230 VAC.
  • Operation: manual or with scheduling.
  • Schedules: daily up to six programs / day.
  • Wall mounting.

Technical Specifications

Display power supply: 230 Vac 50/60 Hz.

Stand-by consumption: ≤ 0.7W

Display: 320x480 pixels TFT, capacitive touch.

Temperature resolution: 0.1 ° C.

Temperature control: 0.2 ° C (default = 0.5 ° C).

Measurable temperature: 1 ° C - 60 ° C.

Humidity sensor accuracy: +/- 3%.

CO2 sensor technology: NDIR.

CO2 sensor accuracy and resolution: @ 22 ° C ± 40ppm, 1ppm.

CO2 measurement range: 0-9999 ppm.

Maximum sensor life: 15 years.

Maximum contact rating: 5A.

Weight: ≤ 200g.


Degree of protection: IP21

Contents of the package



  • 1x Smart thermostat.
  • 1x Wall mount adapter.
  • 1x Instruction Manual.
