MID Certified

ultrasonicheat meter

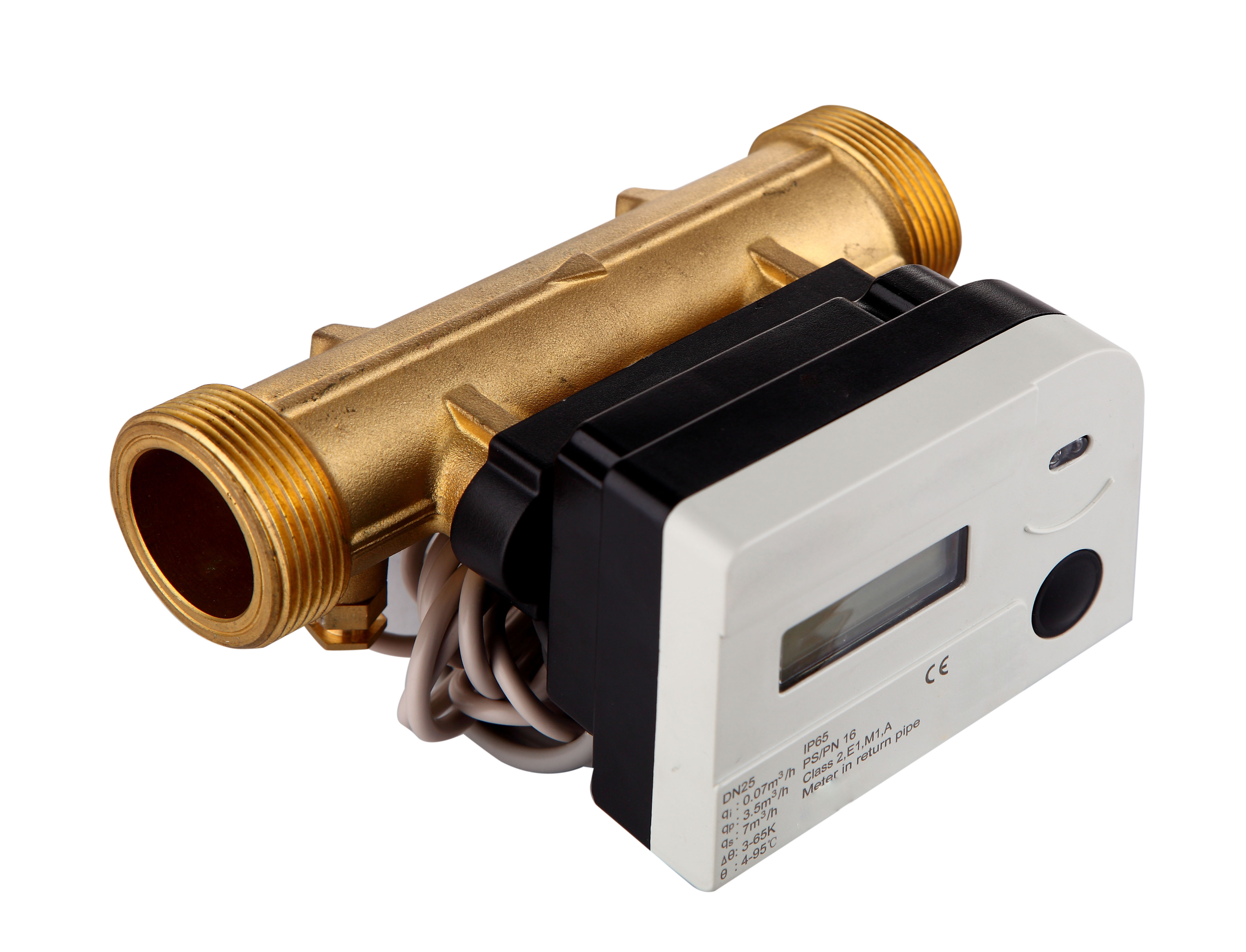

Mid certified ultrasonic

heat meter

A Heat meter designed to detect the thermal energy consumption of each individual user that uses ultrasound technology for precise and reliable measurement.


What is a heat meter and how does it work?

Having a thermal energy meter is the ideal solution to equip direct metering systems inside condominiums where the distribution of heating is so-called "horizontal".

This type of accounting, where possible, represents the most accurate and reliable way to measure the share pertaining to each condominium.

Why choose this product?

  • MID approved (2004/22 / EC)
  • Accurate and reliable measurement
  • Accurate detection even with smaller flow rates
  • Battery life: 11 years
  • Reduced energy consumption
  • Possibility of horizontal or vertical installation
  • Minimum head losses
  • Historical data display: up to 18 months. This includes the accumulated heat energy, volume, total heat energy, hours of operation, etc.

Technical features:

Communication: Pulses
Maximum operating pressure: 1.6 Mpa
Data storage: up to 18 months of historical data
Metrological class: 2
Battery: 3.6 VDC, lithium battery
Operating temperature: 4 ° C - 95 ° C, 3K - 65K
Degree of protection: IP68
Pressure level: PN16
Temperature sensors: PT1000 platinum resistance
Display and indications: kWh, MWh, GJ (optional)
LCD: 8-digit (backlit)
Accumulation: 0.1kWh ~ 9999999.9 kWh

Compatibility with rules and regulations

MID certified
Compliance with the European Directive EU 2002/22 relating to measuring instruments
Compliance with standard EN 1434
Compliance with OIML R75 standard

For information and prices

For more information or to receive the price list, send an email to info@smartdhome.com indicating the product of your interest and, if possible, leaving a telephone contact.
