Built-in thermostat for fancoil with 2 pipes and 3-speed fan with Modbus

Lato modello incasso
Retro modello incasso
FA2

SKU: 01334-6010-00

Model: 01334-6010-00
Installation: built-in
System type: fan coil
Systems control: 2 pipes
Fan speed control: 3 speeds - 230 Vac.
Sales price 162,26 €
Sales price without tax 133,00 €
Discount
Tax amount 29,26 €


We ship to Italy
With shipment SDA for 15,86 €

Preloader
Built-in thermostat for fancoil with 2 pipes and 3-speed fan with Modbus

Built-in thermostat for fan coil with 2 pipes and 3 speed fan

The thermostat, model 01334-6010-00, is a Comfort.me MFC series device suitable for residential and working contexts where accurate control of the heating and cooling system is required. The modern design and the possibility of remote control allow the thermostat to be an excellent solution for those who own a fan coil system.

temperature2  Sistems control

Model 01334-6010-00 controls 2-pipe systems and 3-speed fans.

  temperature2  Mounting type

The 01334-6010-00 model can be flush-mounted thanks to the adapter included in the package. The installation is wired.

 temperature2  Connectivity

Model 01334-6010-00 has two types of connectivity: Wi-Fi and Modbus.




Discover the Line
Comfort.me MFC: the series of thermostats / monitors for heat pumps and fan coils / VMC

The Comfort.me MFC series of smart thermostats and sensors has been designed to meet the needs of all those who own heat pumps, fan coils and forced air ventilation systems. Thanks to the modern and elegant design and the multiple types of installation, Comfort.me MFCs adapt to any residential and working context, providing concrete help in the management of systems and energy saving.

They are ideal for controlling heat pumps or fan coils with a direct (wired) connection and for monitoring the CO2 level in the environment.

Termostato a incasso con sala

Why choose Comfort.me MFC?

  • Can be installed on the wall or recessed.
  • They are equipped with a Modbus communication port allowing a quick dialogue between the elements of the systems
  • that support the protocol.
  • Remotely controllable via App.
  • Ability to monitor the CO2 levels of the environment.

General technical specifications

  • Modes: hot, cold, de-humidification and vacation.
  • Unit of measurement ° C or ° F.
  • Sensors: temperature, humidity, brightness and CO2.
  • Connectivity: Wi-Fi and Modbus.
  • Auxiliary inputs: room occupation or fire alarm.
  • Schedules: daily up to six programs / day.







Features



Functionality

  • Modes: hot, cold, de-humidification and vacation.
    Display: 3.5 '' TFT color touch.
    Remote management via application: present.
    Interface: multilingual (12 languages ​​available).
    Unit of measurement ° C or ° F.
    Sensors: temperature, humidity and brightness.
    Connectivity: Wi-Fi and Modbus.
    Auxiliary inputs: room occupation or fire alarm.
    GEO-fence: activation based on the position.
    Cloud functionality: predictive maintenance and monitoring.
    Fan speed control at: 3 speeds - 230 Vac.
    Valve control: 230 Vac.
    Systems control: 2-pipe.
    Operation: manual or with scheduling.
    Schedules: daily up to six programs / day.
    Mounting: recessed (box 503).

Technical specifications

  • Display power supply: 230 Vac 50/60 Hz.
    Stand-by consumption: ≤ 0.5W
    Maximum relay current: 5 A @ 230 VAC.
    Display: 320x480 pixels TFT, capacitive touch.
    Temperature resolution: 0.1 ° C.
    Temperature control: 0.2 ° C (default = 0.5 ° C).
    Measurable temperature: 1 ° C - 60 ° C.
    Humidity sensor accuracy: +/- 3%.
    Wi-Fi connectivity: IEEE 802.11 b / g / n - 2.4 GHz.
    Security: WPA / WPA2.
    Weight: ≤ 200g.
    Degree of protection: IP.

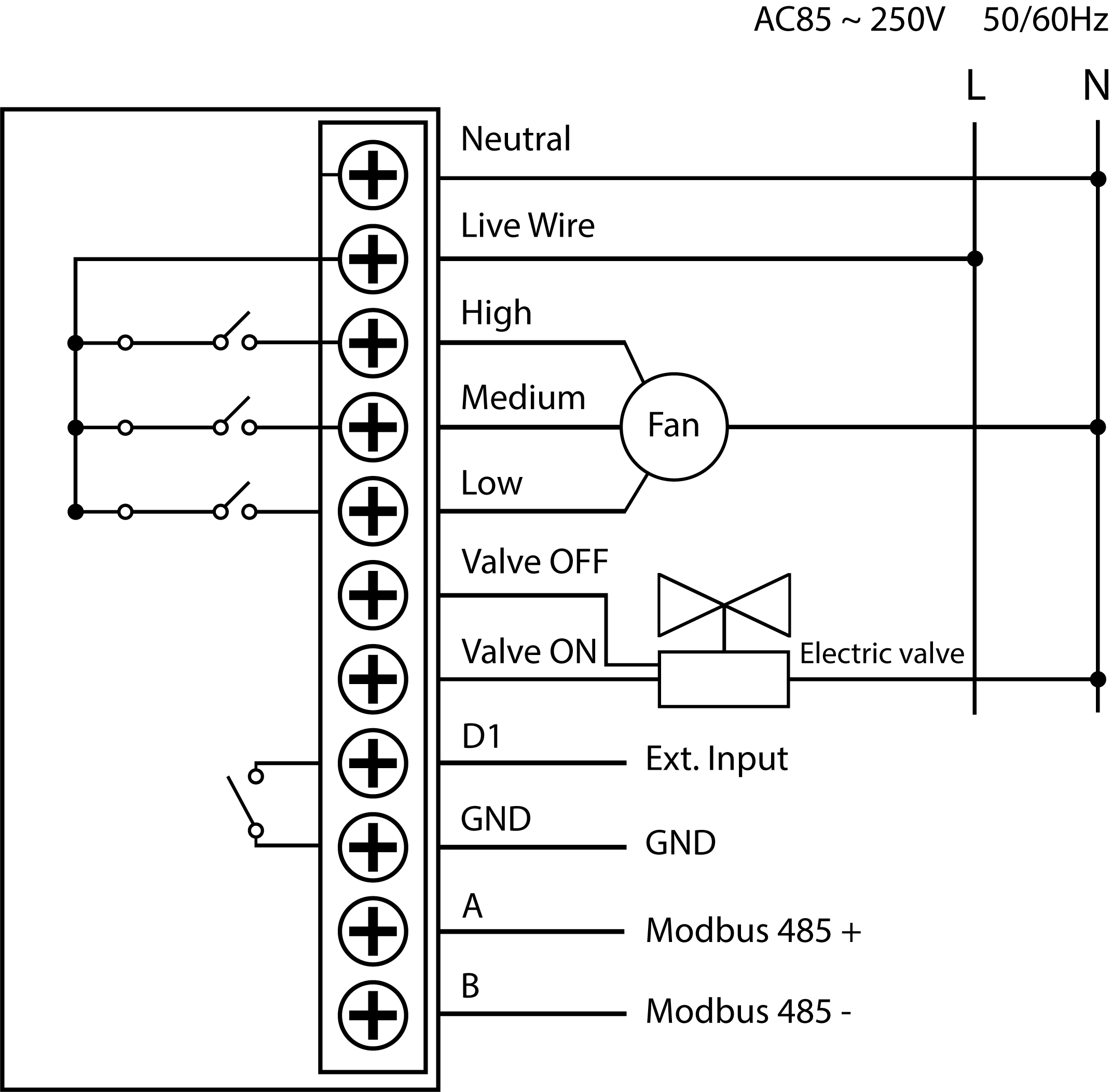

Wiring Diagram




Contents of the package
  • 1x Smart thermostat.
  • 1x Adapter for 503 box.
  • 1x Instruction Manual.
