Built-in thermostat with CO2 for 2-pipe fancoil, 3-speed fan

Lato modello incasso7
Retro modello incasso6
FS2

SKU: 01334-6310-00

Model: 01334-6310-00
Installation: built-in
Systems control: 2 pipes
Fan speed control: 3 speeds - 230 Vac.
Sensors: temperature, humidity, brightness and CO2.
Sales price 315,98 €
Sales price without tax 259,00 €
Discount
Tax amount 56,98 €
We ship to Italy
With shipment SDA for 15,86 €
Preloader
Built-in thermostat with CO2 for 2-pipe fancoil, 3-speed fan

Comfort.me MFC: the series of thermostats / monitors for heat pumps and fan coils / VMC

The Comfort.me MFC series of smart thermostats and sensors has been designed to meet the needs of all those who own heat pumps, fan coils and forced air ventilation systems. Thanks to the modern and elegant design and the multiple types of installation, the Comfort.me MFCs adapt to any residential and working context, providing concrete help in the management of systems and energy saving.


They are ideal for controlling heat pumps or fan coils with a direct (wired) connection and for monitoring the CO2 level in the environment.Termostato a incasso con sala

Why choose Comfort.me MFC?



  • Can be installed on the wall or recessed.
  • They are equipped with a Modbus communication port allowing a quick dialogue between the elements of the systems that support the protocol.
  • Remotely controllable via App.
  • Ability to monitor the CO2 levels of the environment.



Technical Specifications

Modes: hot, cold, de-humidification and holiday.

Unit of measurement ° C or ° F.

Sensors: temperature, humidity, brightness and CO2.

Connectivity: Wi-Fi and Modbus.

Auxiliary inputs: room occupation or fire alarm.


Schedules: daily up to six programs / day.



Flush-mounted thermostat with CO2 measurement for systems with 2 pipes and 3-speed fan

The thermostat / monitor, model 01334-6310-00 with CO2 sensor, is a Comfort.me MFC series device suitable for residential and working contexts where accurate control of the heating and cooling system is required. The modern design and the possibility of remote control allow the thermostat to be an excellent solution for those who own a fan coil system.

temperature2  Systems control

Model 01334-6310-00 controls 2-pipe systems and 3-speed fans.


The device is equipped with a sensor that measures the CO2 present in the environment.

  temperature2  Tipo di montaggio

The 01334-6310-00 model can be flush-mounted thanks to the adapter included in the package. The installation is wired.

 temperature2  Connectivity

Model 01334-6310-00 has two types of connectivity: Wi-Fi and Modbus.



Features



Functionality



  • Modes: hot, cold, de-humidification and holiday.
  • Display: 3.5 '' TFT color touch.
  • Remote management via application: present.
  • Interface: multilingual (12 languages available).
  • Unit of measurement ° C or ° F.
  • Sensors: CO2, temperature, humidity and brightness.
  • Connectivity: Wi-Fi and Modbus.
  • Auxiliary inputs: room occupation or fire alarm.
  • GEO-fence: activation based on the position.
  • Cloud functionality: predictive maintenance and monitoring.
  • Fan speed control at: 3 speeds - 230 Vac.
  • Valve control: 230 Vac.
  • Systems control: 2 pipes.
  • Operation: manual or with scheduling.
  • Schedules: daily up to six programs / day.
  • Mounting: recessed (box 503).

Technical Specifications

Display power supply: 230 Vac 50/60 Hz.

Stand-by consumption: ≤ 0.7W

Display: 320x480 pixels TFT, capacitive touch.

Temperature resolution: 0.1 ° C.

Temperature control: 0.2 ° C (default = 0.5 ° C).

Measurable temperature: 1 ° C - 60 ° C.

Humidity sensor accuracy: +/- 3%.

CO2 sensor technology: NDIR.

CO2 sensor accuracy and resolution: @ 22 ° C ± 40ppm, 1ppm.

CO2 measurement range: 0-9999 ppm.

Maximum sensor life: 15 years.

Maximum contact rating: 5A.

Wi-Fi connectivity: IEEE 802.11 b / g / n - 2.4 GHz.

Security: WPA / WPA2.

Operating temperature: 1 ° C - 60 ° C.

Weight: ≤ 200g.


Degree of protection: IP21

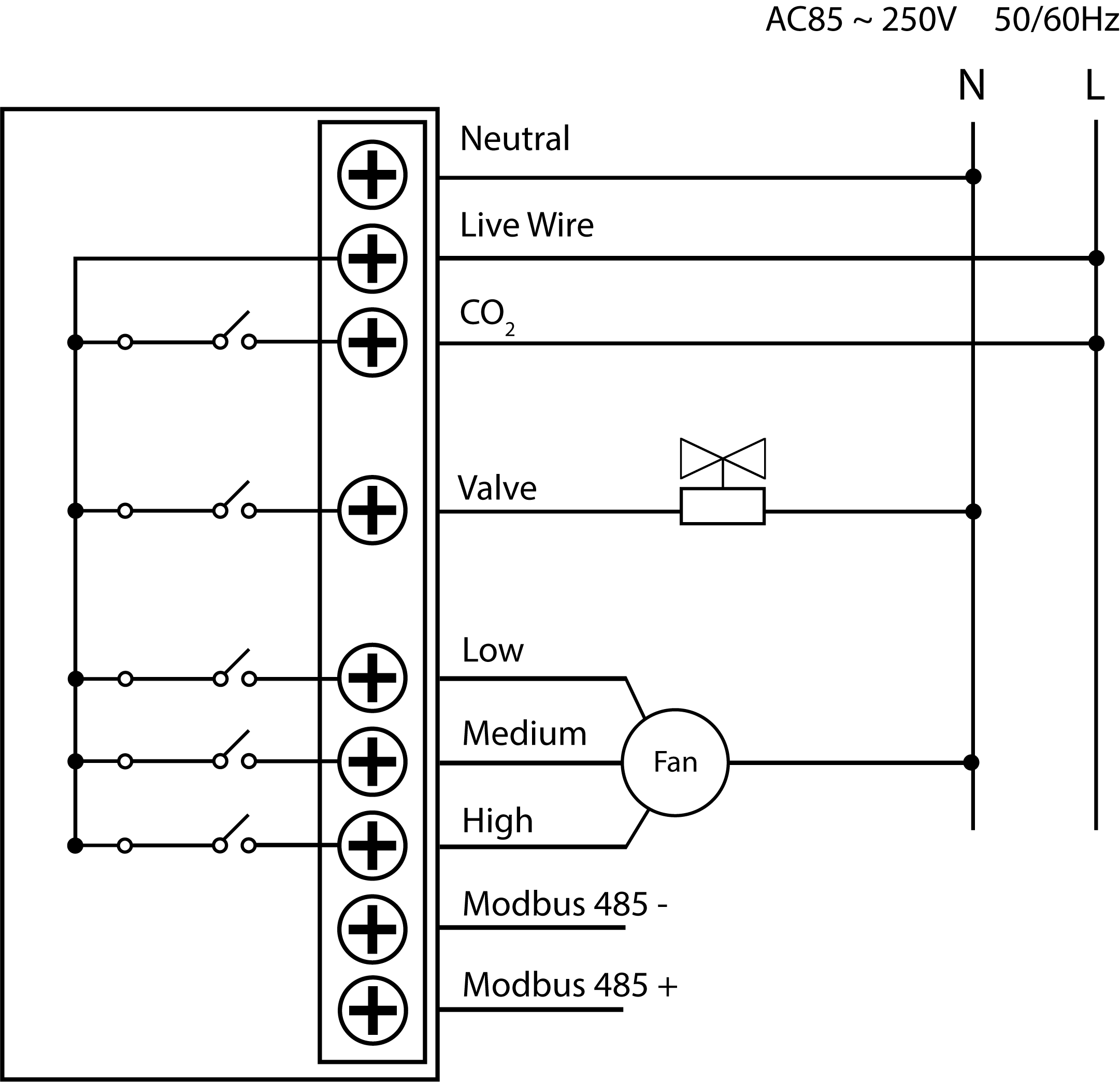

  • Wiring Diagram


Contents of the package



  • 1x Smart thermostat.
  • 1x Adapter for 503 box.
  • 1x Instruction Manual.
