Wall mounted CO2 monitor with relay control with Modbus
Wall mounted CO2 monitor with relay control with Modbus
Wall mounted CO2 monitor with fan control: On / Off

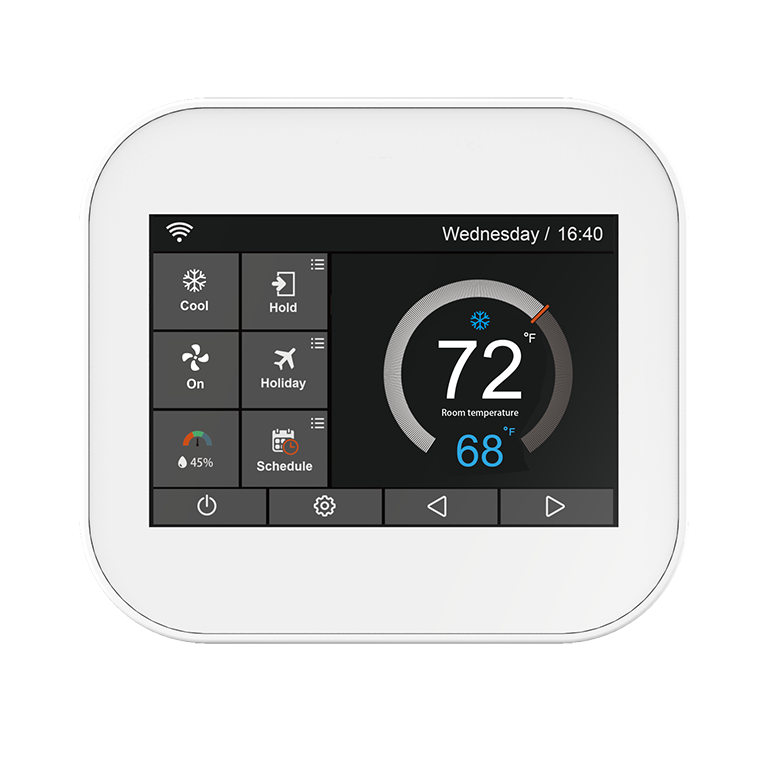

The thermostat, model 01334-6430-00, is a Comfort.me MFC series device suitable for residential and working contexts where accurate control of the heating and cooling system is required. The modern design and the possibility of remote control allow the thermostat to be an excellent solution for those who own a system with forced air ventilation.
Systems control
Model 01334-6430-00 controls forced ventilation systems.
Mounting type
The 01334-6430-00 model can be wall-mounted thanks to the adapter included in the package. The installation is wired.
Connectivity
Model 01334-6430-00 has two types of connectivity: Wi-Fi and Modbus.
Discover the Line
Comfort.me MFC: the series of thermostats / monitors for heat pumps and fan coils / VMC
The Comfort.me MFC series of smart thermostats and sensors has been designed to meet the needs of all those who own heat pumps, fan coils and forced air ventilation systems. Thanks to the modern and elegant design and the multiple types of installation, the Comfort.me MFCs adapt to any residential and working context, providing concrete help in the management of systems and energy saving.
They are ideal for controlling heat pumps or fan coils with a direct (wired) connection and for monitoring the CO2 level in the environment.
Why choose Comfort.me MFC?
- Can be installed on the wall or recessed.
- They are equipped with a Modbus communication port allowing a quick dialogue between the elements of the systems that support the protocol.
- Remotely controllable via App.
- Ability to monitor the CO2 levels of the environment.
General technical specifications
Modes: hot, cold, de-humidification and holiday.
Unit of measurement ° C or ° F.
Sensors: temperature, humidity, brightness and CO2.
Connectivity: Wi-Fi and Modbus.
Auxiliary inputs: room occupation or fire alarm.
Schedules: daily up to six programs / day.
Features
Functionality
- Display: 3.5 '' TFT color touch.
- Remote management via application: absent.
- Interface: multilingual (12 languages available).
- Unit of measurement ° C or ° F.
- Sensors: CO2, temperature, humidity and brightness.
- Connectivity: Wi-Fi and Modbus (customization is required for incompatible registers).
- Measurement storage: 7 days.
- Operation: manual or with scheduling.
- Schedules: daily up to six programs / day.
- Wall mounting.
Technical Specifications
Display power supply: 230 Vac 50/60 Hz.
Stand-by consumption: ≤ 0.7W
Display: 320x480 pixels TFT, capacitive touch.
Temperature resolution: 0.1 ° C.
Temperature control: 0.2 ° C (default = 0.5 ° C).
Measurable temperature: 1 ° C - 60 ° C.
Humidity sensor accuracy: +/- 3%.
CO2 sensor technology: NDIR.
CO2 sensor accuracy and resolution: @ 22 ° C ± 40ppm, 1ppm.
CO2 measurement range: 0-9999 ppm.
Maximum sensor life: 15 years.
Maximum contact rating: 5A.
Weight: ≤ 200g.
Degree of protection: IP21
Contents of the package
- 1x Smart thermostat.
- 1x Wall mount adapter.
- 1x Instruction Manual.
